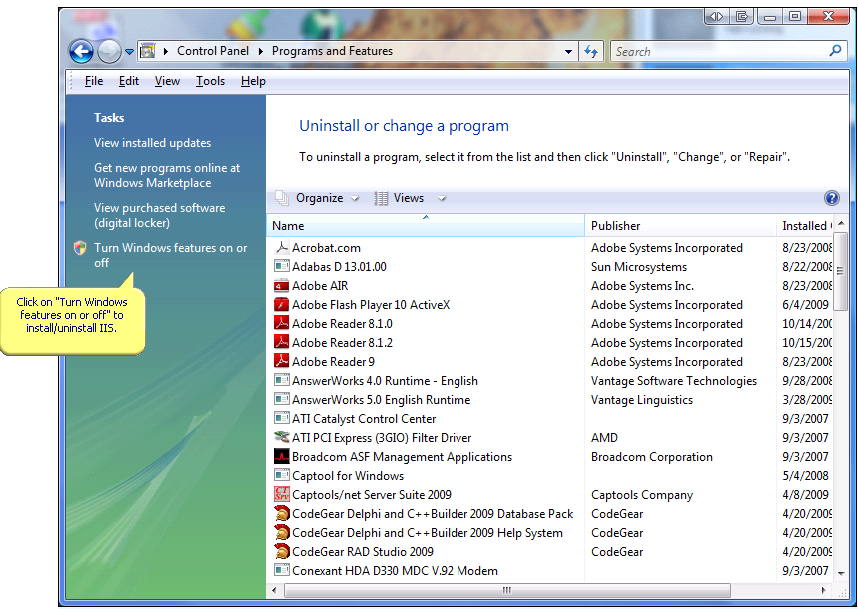

To install/uninstall the IIS on Windows Vista or Server 2008 or later (e.g. Windows 7), use the Windows Control Panel, "Add or Remove Programs" function.   Click on the "Turn Windows Feature on or off" link:

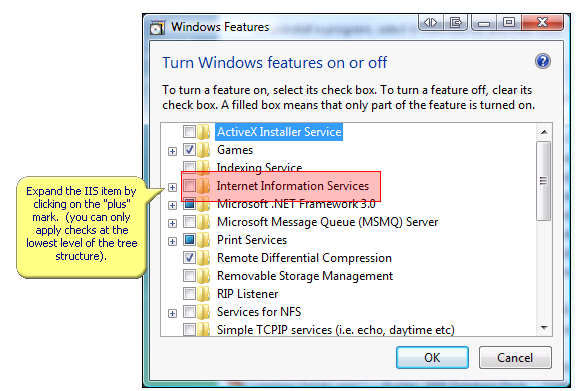

To turn on the IIS, or if IIS is already installed, to turn on features required by Captools/net check the applicable sub-nodes noted below.



If IIS was already installed, it may be needed by other applications, so avoid un-checking nodes which might be required by those applications.

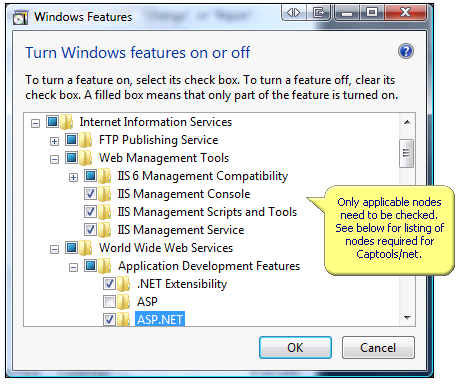

IIS Nodes Required or desired for Captools/net:



Web Management Tools  (clicking on check box will set default sub-nodes)

IIS Management Console

IIS Management Scripts and Tools

IIS Management Service



World Wide Web Services (clicking on check box will set default sub-nodes)

Application Development Features

.Net Extensibility

ASP.Net

ISAPI Extensions

ISAPI Filters

Server-Side Includes



Common HTTP features (clicking on check box will set default all sub-nodes)

Default Document

Directory Browsing

HTTP Errors

HTTP redirection (under Common HTTP features)

Static Content



Health and Diagnostics (click on check box to set default sub-nodes)



Performance Features (click on check box to set default sub-nodes)



Security (click on check box to set default sub-nodes)





After checking the required nodes, click "OK" to complete the installation.





Uninstalling IIS 7 - To uninstall IIS 7, uncheck all of the nodes and click "OK".  Note that this can affect other applications, so you should do so only if you intend to subsequently re-check these nodes in order to force a re-install of the IIS features.
